1. Verify installation plan
Follow the two steps below to make sure your LEAPWORK installation matches your license type and to identify whether you are required to take action.
Platform License
For teams collaborating on the design of automation flows which are executed by multiple robots.
Single-User License
For small setups with access to all platform components, but installation limited to a single computer
A. Standard Platform

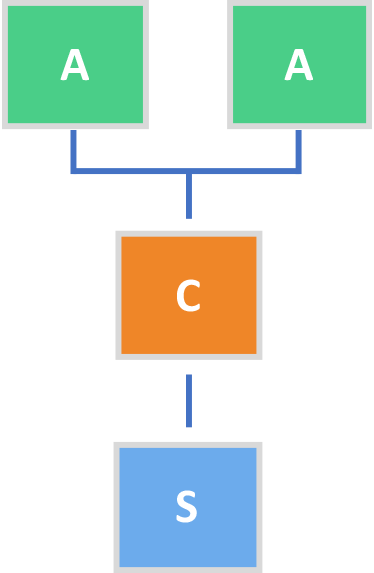

Installation description
All LEAPWORK components are installed on separate machines. All users working with LEAPWORK have Studio installed on their computer. All Studios point to the same Controller on a shared server for collaboration. The LEAPWORK Agents are installed on dedicated workstations (physical or virtual). |
|
Platform License supported |
|
|
With a Platform License and the Standard Platform installation type, your installation plan is ready for the 2018.1 upgrade. |
This installation type cannot be used with a Single-User License from release 2018.1. A Single-User License requires all LEAPWORK components to be installed on the same machine. |
|
|
Single-user License is NOT supportedB. Standard Single-User installation

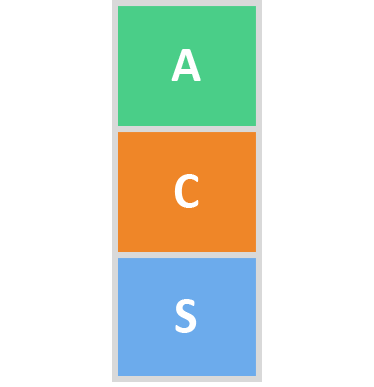

Installation description
One Studio, one Controller, and one Agent are installed on the same machine, |
|
Platform License supported |
|
|
This installation type can be used with a Platform License but is generally not a good fit. Instead of acquiring a Platform License for each machine, consider a Single-User License instead. |
With one or more Single-User Licenses, and the Standard Single-User installation, you're ready for the upgrade to 2018.1. |
C. Standard Platform for a single user

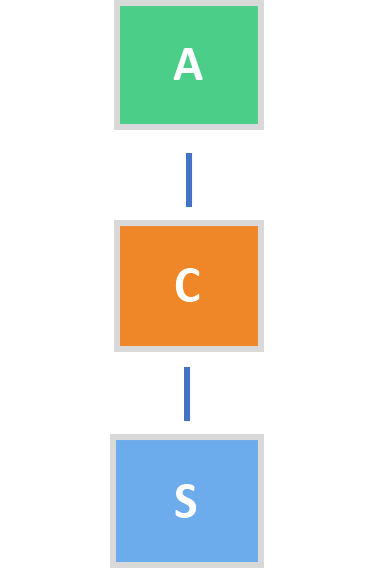

Installation description
This setup has Studio, Controller, and an Agent installed, each on separate machines. |
|
Platform License supported |
|
|
With a Platform License, this installation type is ready for the 2018.1 upgrade. |
This installation type cannot be used with a Single-User License from release 2018.1. A Single-User License requires all LEAPWORK components to be installed on the same machine. |
D. Multiple Standard Platforms

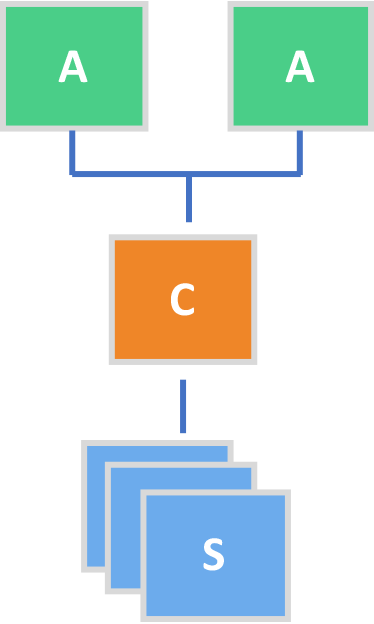

Installation description
This setup has Studio, Controller, and an Agent installed, each on separate machines. Studios are accessing multiple Controllers. |
|
Platform License supported |
|
|
With a Platform License for each Controller, this installation plan is ready for the 2018.1 upgrade. |
This installation type cannot be used with a Single-User license from release 2018.1. A Single-User License requires all LEAPWORK components to be installed on the same machine. |
